• The majority of HMI head feeder failures are caused by breakdowns in the insulation where the contact pins meet the wire.
• Fully overmolding the rear of the connector with a full encapsulation of the individual conductors and cable jacket, will prevent insulation leak for a lifetime.
• Available in all configurations from 575W to 18KW
• Maccam overmolded HMI cables are priced about the same as a traditional mechanical head feeder! |
|
The Cable Test is automatic, easy to use and small enough to be hand held. It has a two color LED display which mimics the pin pattern of the plug and gives a simple green for go or flashing red for fail.
FEATURES
• Small, portable and easy to use with special non-locking test connectors
• High voltage (400V) insulation test
• Each pin tested in turn for leakage to every other pin
• A total of 64 tests for a 9 pin connector
• Simple LED mimic display shows green for pass and flashing red for fail
• Battery powered or from plug in power supply
• Display adapts automatically to 7 or 9 pin plugs
• Continuity test using the plug in probe
• Continuity tested at 200mA
• Switches to low power mode when idle to conserve battery power
• Insulation test time less than 3 seconds for a 9 pin connector
(to see more Click Here)... |
|
It has never been so easy to create a lighting effect of fire, a TV set, neon signs or a flash of a thunderstorm.
Stored precision presets with a flicker resolution of 24 fps create natural looking effects using fluoros, LEDs, HMIs combined with shutters and all types of tungsten - without any limit of output power.
Three output channels provide a virtually unlimited number variations of lighting effects. A preset automatically sets up all required settings (to read more Click Here)...
NEW! Kino Flo’s
VistaBeam® 600 and
300 will change the way our industry lights film and television studios. A VistaBeam 600, for example, delivers the equivalent of a 4,000 Watt Softlight, but uses only nine Amps of power...
(to read more Click Here)
Mac Tech 9 Maxi
The Future of Light is Now! The Mac Tech 9 Maxi weighs only 48 pounds and draws only 56 amps loaded with 750 watt bulbs. They are 10% brighter than a standard par 64 maxi brute, which is just that, a brute that weighs over 100 pounds and draws more than 90 amps. There's a good reason the auto makers stopped using sealed beam par headlights (twenty years ago). They found that using a separate lens, reflector and bulb was more cost effective to maintain while providing the driver with a better quality of light. You see, Mac Tech Lighting Solutions are the better way to go. Go Green for your next shoot!
Mac Tech 9 Maxi Overview
The Mac Tech 9 Maxi has been upgraded, for 2010, to use the SPH Series bulbs. We found the 575 watt bulb to be TWICE as bright as our previous bulb and only 10% less than the 750 watt bulb! We outperform existing par lights by using 575 watt or 750 watt bulbs along with our high output parabolic reflector and 8" interchangeable lenses. This means quality and flexible lighting, reduced power and heat, and no more boxes of old expensive style par 64 bulbs. Now you are truly free to move about the country and shoot. The parabolic reflector creates a much smoother field of light with any of our six lenses. The axial mounted bulb in conjunction with the parabolic reflector eliminates inconsistent hot spots and shadows associated with standard par 64 bulbs. You have more output to work with because you don't need to use diffusion. Remember the key is to amplify, only diffuse when absolutely necessary!
The Top Choice for Film & Television!
The Mac Tech 9 Maxi has been used on a vast number of blockbuster films (see our credits section for a partial list). Top Directors of Photography, gaffers and rigging gaffers are raving about the quality of light the Mac Tech fixtures produce. These are by far the best green production lighting solutions on the market today!
Go Green with 25%-45% Less Energy Consumption and Heat Generation
Yes that's right, 25% to 45% less power. The magic is in our parabolic reflector. When using our 750 watt bulb we kick butt on a par 64 sealed beam. And when using our 575 watt bulb we blow away a 1000 watt par 64 bulb. Let's see; less power, less heat and more output.... That's a no brainer!
Technical Specifications
Power Supply: 110 - 240 volts V
Current Consumption: 56 amps with 750 watt bulbs, 43 amps with 575 watt bulbs
Dimensions: 38” (W) x 8” (D) x 43” (H)
Weight: 48 lbs. / 21.772 kg
Included Items: Dual Soccopex connector
|
|
JOKER-BUG 800
MORE OUTPUT

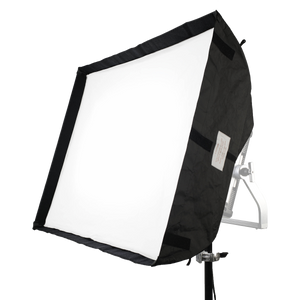

Because of the increasing use of Chimera® Lightbanks for fine daylight interiors, two camera interviews, TV magazines, and documentaries, we designed this fixture to take full advantage of the large reflective material inside a Lightbank. Utilizing our BUG™ “bare-bulb” design we can produce an amazing 50% (to read more click here)...
The workhorses of studio and location lighting for many years, these lampheads feature a complete specification with quality construction and performance. The endless focus mechanism eliminates lamp shock when full focus is reached, and a surge resistor helps extend lamp life. Accessories can be loaded and locked with the lamp burning thanks to spring loaded accessory lock.
Standard specification includes a three slot accessory holder, 4 leaf revolving barndoor with filter clips, safety wire mesh, heat resistant fibreglass body, 6 metre power cable with switch (fused on EUR model).
|
A long time favourite for studio and location lighting where high power is required. These lampheads feature a complete specification with quality construction and performance. The endless focus mechanism eliminates lamp shock when full focus is reached, and a surge resistor helps extend lamp life. Accessories can be loaded and locked with the lamp burning thanks to heat resistant handles.
Standard specification includes a two slot accessory holder, 4 leaf revolving barndoor with filter clips, safety wire mesh, heat resistant fibreglass body, 6 metre power cable with switch (fused on EUR model).
|
|
